Product Description

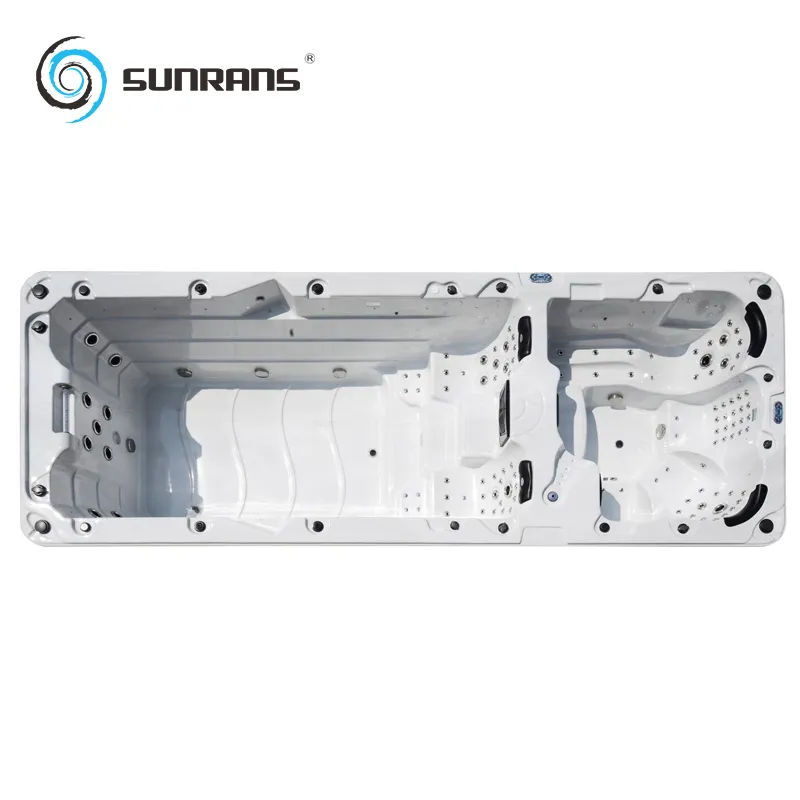

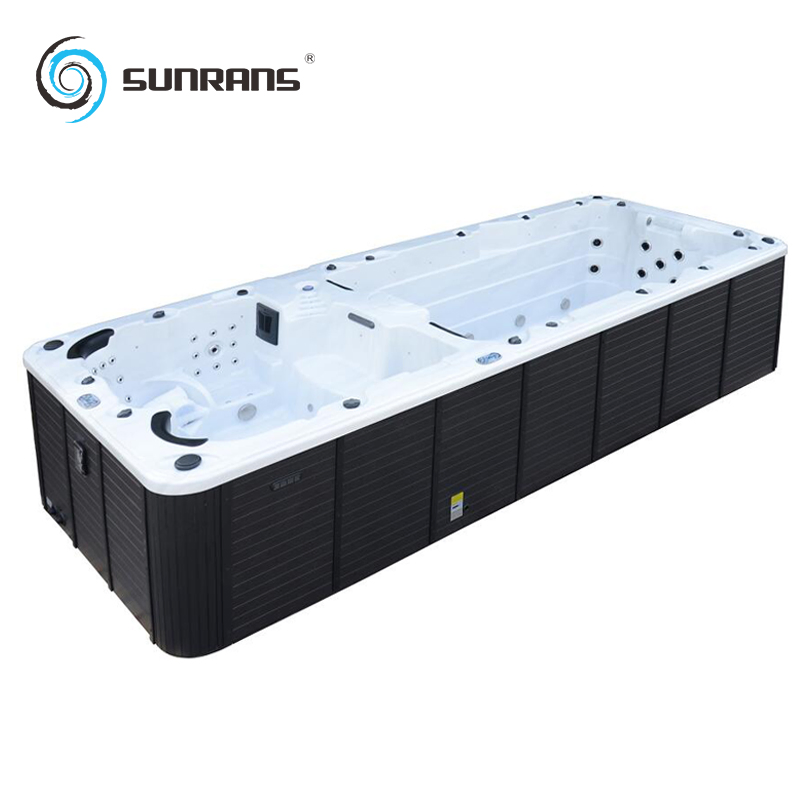

Outdoor Whirlpool Massage Hot SPA Jacuzzi Swim SPA
Specifications:
Specifications:
| SPA part | Swimming part |
| Seating Capacity:3 Persons | Seating Capacity:0 Persons |
| Lounge:1 Persons | Lounge:2 Persons |
| Dimensions/Weight/ Container load | |
| SPA part: 2200mm*1700mm*1300mm | Pool Part: 4150mm*2200mm*1300mm |
| Packing dimension | 5950mm*2300mm*1400mm |
| Weight - Dry/Filled | 850KG/ 10250KG |
| Water capacity | 2482 US Gallon/ 9400Liters |
| Container load | 1pc/ 20GP; 2pc/ 40ft |
| Shell | |

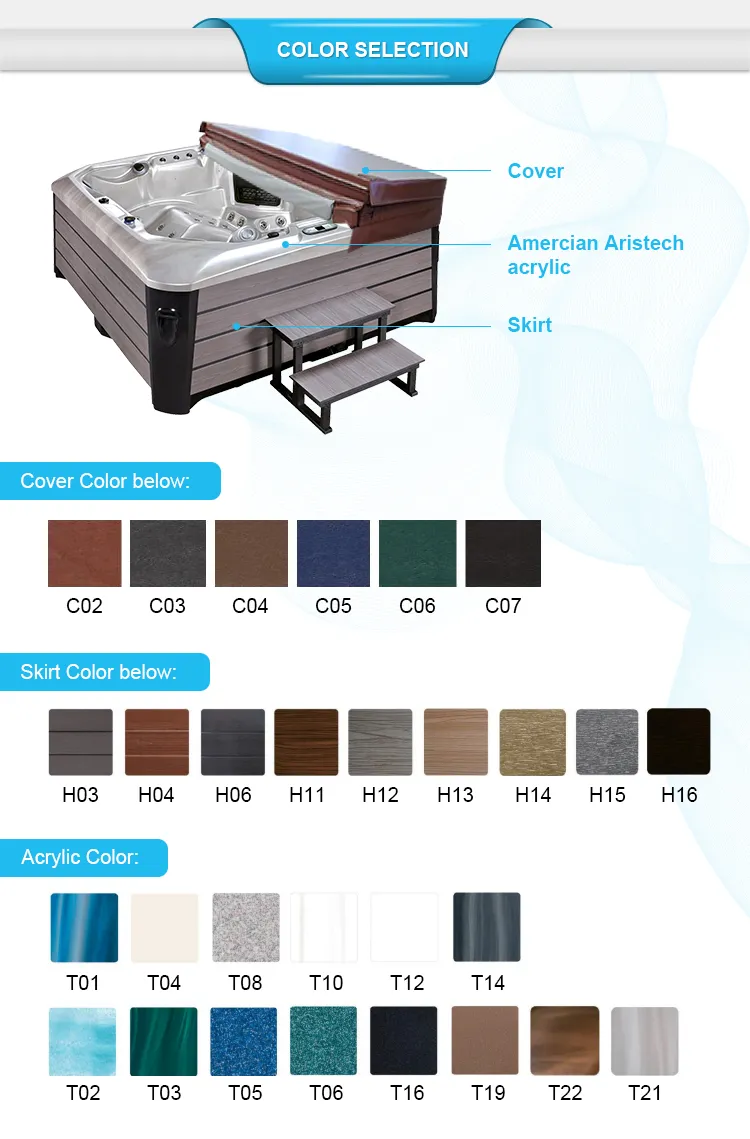

| Shell colors | 10 color available |
| Shell material | Aristech Acrylic |
| Pumps--SPA Part (UL,CE, KC approved) | Pumps--Swimming Part (UL,CE, KC approved) |
| Jet pump 1: 2.0HP | Swim pump: 3.0HP x 3pcs |
| Jet pump 2: 2.0HP | Jet pump: 2.0HP x 1pc |
| Circulation pump:1HP | Circulation pump:1HP |
| Air blower:1.0HP | Air blower: 1.5HP |
| Electrics--SPA Part | Electrics--Swimming Part |
| Control system America Balboa control | Control system America Balboa control |
| Max power consumption: 7500Watt 11.4A in 380V 50Hz | Max power consumption: 13125Watt 19.9A in 380V 50Hz |
| Heater: 3KW/220-240VAC | Heater: 3KW/220-240VAC |
| Underwater lighting:5″ LED | Underwater lighting:5″ LED |
| Jet --SPA Part | Jet --Swimming Part |
| Jets total (pc):71 | Jets total (pc):65 |
| Massage jets (pc): 62 | Massage jets (pc): 46 |
| Swim jet (pc): 0 | Swim jet (pc): 9 |
| Air jets (pc): 9 | Air jets (pc): 10 |
| Filtration | |
| Filter | Front access filters x 2pcs |
| Effective Filtration Area | 100 sq. ft. |
| Ozone Generator | 50mg/h |
| Features | |
| Water diverter(pc): 2 | Water diverter(pc): 2 |
| Air regulater(pc): 3 | Air regulater(pc): 3 |
| Suctions (pc): 4 | Suctions (pc): 6 |
| Drain valve (pc): 1 | Drain valve (pc): 1 |
| Headrest pillows(pc): 2 | Headrest pillows(pc): 2 |

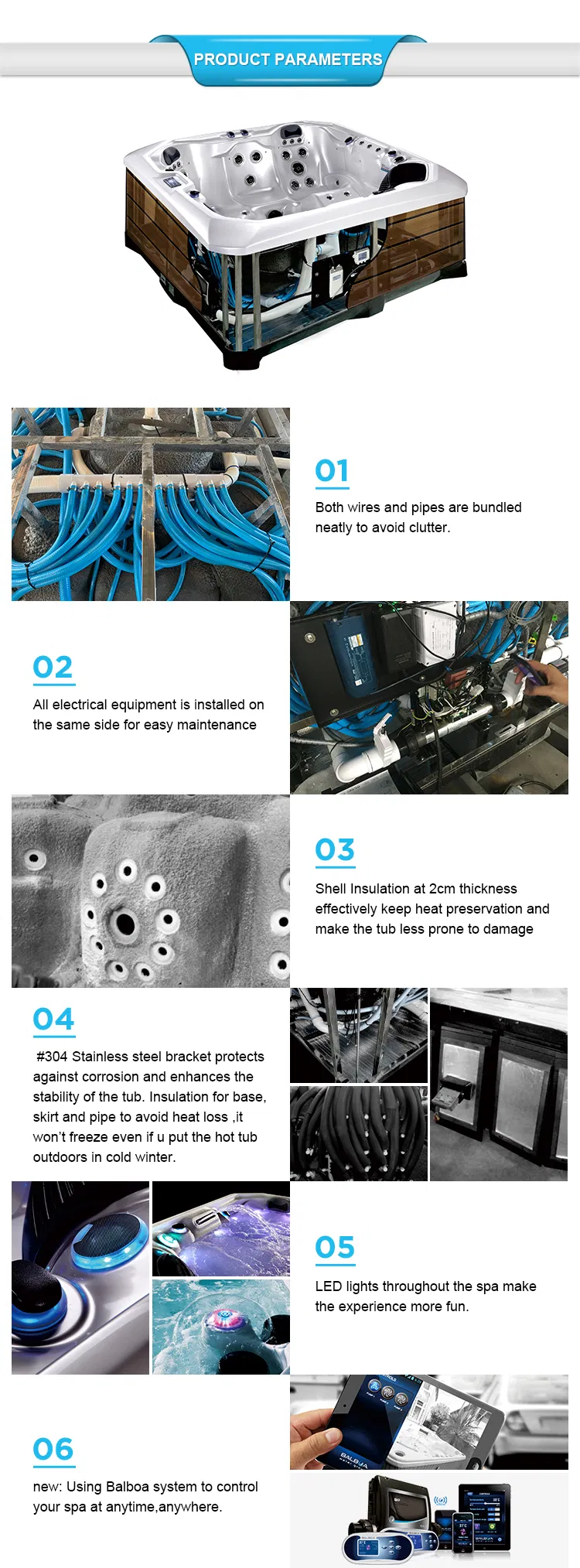

| Support frame | #304 Stainless steel |
| Overflow outlet (pc): | 2 |
| Skirt: | Brown/ Grey / Black color |
