How Can Linear Shower Drains Improve Bathroom Drainage and Design? |

Understanding Linear Shower Drains

A linear shower drain is an elongated drainage fixture designed to collect wastewater along a narrow channel. It is commonly installed in walk-in showers, wet rooms, contemporary residential bathrooms, hotels, apartments, and other spaces where controlled drainage and a clean floor appearance are important.

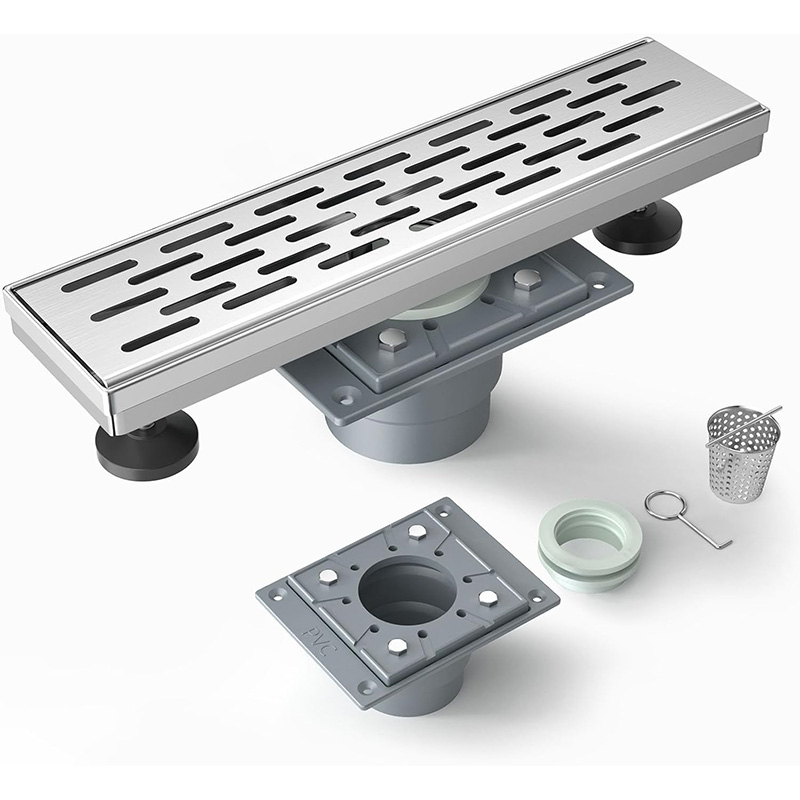

A typical linear drain assembly includes a channel body, a removable grate or cover, a drain outlet, and the necessary components for connecting the fixture to the plumbing and waterproofing system. The exact configuration varies by model. Some products use a conventional slotted grate, while others feature a tile-insert cover that allows the drain to blend more closely with the surrounding floor.

One important difference between linear and point drainage is the way the floor directs water. A point drain generally requires the surrounding floor to slope toward a central collection point. A linear drain can often accommodate a single-plane slope toward the channel, simplifying the layout for certain tile designs and large-format flooring.

Nevertheless, a linear drain does not eliminate the need for correct plumbing, adequate slope, or continuous waterproofing. The complete shower assembly must work together to prevent standing water, leakage, and premature damage to surrounding finishes.

Why Linear Shower Drains Are Popular in Modern Bathrooms

A Clean, Minimalist Appearance

The long, narrow profile of a linear drain creates a restrained visual line across the shower floor. Stainless steel finishes, understated grates, and tile-insert designs can complement contemporary, industrial, minimalist, and luxury bathroom interiors.

Flexible Shower Floor Planning

Because a linear drain can collect water along its length, designers have more flexibility when planning the floor slope. A single-plane slope can be particularly useful for large-format tiles that are difficult to arrange neatly around the multiple slopes associated with many point-drain installations.

Support for Walk-In and Curbless Designs

Linear drains are frequently specified in open-concept showers and curbless bathroom designs. Depending on the building layout and selected drainage system, the channel may be positioned along a wall, at the shower entrance, or at another suitable location. A flush-entry shower still requires careful planning of floor elevations, water containment, accessibility, and drainage performance.

Multiple Grate and Finish Options

Different grate styles allow buyers to coordinate drainage hardware with taps, shower fittings, tiles, and other bathroom accessories. The choice can also affect cleaning convenience and the visual character of the finished space.

Practical Maintenance Access

Many linear drains have removable covers that allow access to hair-catching components and the channel for routine cleaning. This can make regular maintenance straightforward when the design provides adequate access and the correct cleaning procedure is followed.

Common Types of Linear Shower Drains

Linear shower drains are available in several configurations. The most suitable option depends on the design concept, tile specification, installation method, and maintenance expectations.

1. Stainless Steel Grate Drains

These models use a visible metal grate to cover the drainage channel. They are widely considered for modern bathrooms because stainless steel can provide a durable surface and a clean architectural appearance. Buyers should confirm the steel grade, finish quality, corrosion-resistance requirements, and suitability for the installation environment.

2. Tile-In Linear Drains

A tile-in drain uses a recessed tray or insert that accepts a compatible piece of floor tile. This can create a more integrated appearance and reduce the visual contrast between the drain and the surrounding floor. The tile thickness, insert depth, finished height, and ease of removal must be checked before installation.

3. Wall-Adjacent Linear Drains

These drains are designed to sit close to a shower wall. They can create a neat transition between the wall and floor and may simplify certain floor layouts. However, wall-adjacent installations require careful coordination of the channel flange, waterproofing membrane, wall finish, and floor slope.

4. Center or Offset Outlet Configurations

The outlet may be positioned centrally or offset along the channel, depending on the product. Outlet location affects the plumbing connection and the work required to coordinate the drain with the existing waste pipe. Confirm the actual outlet dimensions and orientation rather than relying on the external channel length alone.

How to Choose the Right Linear Shower Drain Size

Choosing the correct drain length is essential for both appearance and performance. A drain that is too short may leave poorly drained areas near the edges, while an unnecessarily long model may complicate installation or increase project costs.

Measure the Finished Shower Area

Start with the actual shower dimensions, not just the rough opening. Consider the finished wall surfaces, tile thickness, glass partition location, and available floor space. Confirm whether the manufacturer's stated length refers to the channel itself or another measurement.

Coordinate the Drain with the Floor Layout

The drain length should work with the intended tile arrangement and the direction of the floor slope. For wall-adjacent installations, verify the available space and the required relationship between the channel, wall finishes, and waterproofing details.

Check Drainage Capacity

The required drainage capacity depends on the combined flow of the shower fixtures, the outlet connection, the channel design, and the plumbing system. A large rain shower or multiple shower outlets may deliver water faster than a low-flow fixture.

Request the manufacturer's stated flow-rate data and confirm that it is applicable to the intended installation conditions. Do not assume that a longer drain automatically provides sufficient capacity. The outlet size, trap, downstream pipework, and other restrictions can limit actual system performance.

Confirm Outlet Position and Access

Check the distance between the outlet and the walls, the available pipe depth, and whether the drain connects horizontally or vertically. Renovation projects may have limited space beneath the floor, so plumbing compatibility should be established before the final model is selected.

Installation, Floor Slope, and Waterproofing Requirements

Installation quality has a direct influence on drainage performance and the long-term condition of the bathroom. Even a well-made linear shower drain can perform poorly when the floor is incorrectly sloped or the waterproofing system is not connected according to the product instructions.

Step 1: Confirm the Finished Floor Height

Determine the final height of the substrate, waterproofing layers, tile adhesive, and floor tile before setting the drain. The grate or tile insert must align correctly with the surrounding finished floor. Incorrect height can create a raised edge, an uneven transition, or an area where water collects.

Step 2: Plan the Floor Slope

Linear drains often permit a single-plane slope toward the channel. The required gradient depends on the applicable building requirements and the drainage system manufacturer's instructions. As an example, some systems specify a slope of approximately 1–2%, but this should not be treated as a universal requirement for every product or jurisdiction.

Step 3: Integrate the Waterproofing System

The drain must be compatible with the selected waterproofing membrane and its connection details. Follow the specified procedure for bonding, clamping, sealing, and reinforcing the membrane around the channel. A visible bead of sealant alone should not be assumed to replace the complete waterproofing detail required by the system.

Step 4: Connect and Test the Plumbing

Ensure that the outlet is securely connected and that the waste pipe and trap are correctly installed. Conduct the required leak test and verify drainage performance before covering concealed components or completing the floor finish.

Step 5: Install the Floor Finish and Grate

Set the surrounding tile to the specified finished level and maintain the clearances required for the removable grate. Confirm that the cover can be lifted for future maintenance and that the installation does not obstruct the drainage openings.

For complex installations, especially curbless showers, commercial wet rooms, or renovations involving structural floors, use a qualified installer and coordinate plumbing, waterproofing, and tile work before construction begins.

Choosing Materials and Finishes for Linear Shower Drains

Material selection affects corrosion resistance, surface appearance, cleaning requirements, and expected service life. The right choice depends on the environment, the maintenance plan, and the finish specification of the bathroom project.

Stainless Steel

Stainless steel is commonly used for drain channels and grates. Buyers should identify the exact grade rather than relying only on the phrase "stainless steel." Chloride exposure, cleaning chemicals, water conditions, and installation practices can influence corrosion performance.

Surface Finishes

Brushed, polished, matte, and colored finishes can help coordinate a drain with other bathroom fittings. Confirm whether a color is produced through the material itself, a surface treatment, or a coating. Ask how the finish should be cleaned and whether the supplier can maintain consistency across repeat orders.

Grate Openings and Hair Collection

The grate pattern affects appearance, access, and the way debris reaches the channel. A suitable hair-catching component can simplify routine cleaning, but it must be compatible with the product and should not reduce drainage performance beyond the intended design.

Design Coordination

For a cohesive bathroom, compare the drain finish with taps, shower heads, door hardware, and tile colors. For projects with many rooms, document the approved finish and model number to prevent substitutions during procurement.

Common Purchasing and Installation Mistakes to Avoid

Choosing by Appearance Alone

A decorative grate may look suitable but still be incompatible with the required flow rate, outlet arrangement, or waterproofing method. Evaluate technical requirements before finalizing the appearance.

Ignoring the Complete Drainage System

The channel is only one part of the installation. The trap, waste pipe, slope, waterproofing, and shower fixture flow all influence performance. Confirm that the entire system is suitable for the application.

Ordering the Wrong Length

Using rough dimensions without allowing for finished surfaces can lead to fit problems. Confirm the product's actual dimensions and installation clearances with a dimensioned drawing.

Assuming Every Waterproofing System Is Compatible

Different drains use different flange and membrane connection designs. Verify compatibility and follow the manufacturer's documented installation sequence. Unapproved combinations can increase the risk of leakage.

Overlooking Cleaning Access

A drain that is difficult to open or clean can become a maintenance problem. Check how the grate is removed, whether a hair strainer is included, and whether replacement components are available.

Failing to Approve a Reference Sample

For wholesale or multi-unit projects, review the actual product before committing to a large order whenever possible. Confirm the finish, dimensions, outlet details, included accessories, packaging, and inspection requirements in writing.

How to Keep Linear Shower Drains Clean and Efficient

Routine maintenance helps preserve the drain's appearance and reduces the likelihood of blockages caused by hair, soap residue, and other debris.

• Remove visible debris regularly. Lift the grate as instructed and remove accumulated hair and dirt from the accessible components.
• Clean with suitable products. Use a soft cloth and a cleaner approved for the actual drain material and finish.
• Avoid abrasive tools. Steel wool, aggressive scouring pads, and unsuitable chemicals may scratch surfaces or damage protective finishes.
• Inspect drainage performance. If water begins to drain slowly, check for accessible debris and investigate the trap or waste pipe if the problem continues.
• Check removable parts. Make sure the grate, strainer, and other accessible components are correctly seated after cleaning.
• Follow the manufacturer's instructions. Maintenance requirements can differ by material, finish, and drainage configuration.

Persistent pooling may indicate an incorrect floor slope, a partially blocked outlet, or another installation issue. Cleaning the grate will not correct an improperly formed floor or a defect in the concealed waterproofing system. These problems should be assessed by a qualified professional.

How to Select a Reliable Linear Shower Drain Supplier

For importers, wholesalers, bathroom retailers, contractors, and project buyers, supplier selection affects not only purchase price but also product consistency, documentation, delivery planning, and after-sales support.

Evaluate Product Specifications

Ask for technical drawings, material grades, channel dimensions, outlet specifications, grate options, installation instructions, and applicable flow-rate information. Clear documentation helps the project team verify compatibility before ordering.

Review Quality Control

Ask how the supplier checks dimensions, surface finishes, outlet connections, removable components, and packaging. For larger projects, agree on inspection criteria and acceptable defect levels before mass production or shipment.

Confirm Customization Capabilities

Depending on the manufacturer's product range, customization may involve channel lengths, outlet positions, grate designs, surface finishes, packaging, or private-label branding. Confirm feasibility, tooling requirements, minimum order quantities, and development lead times for each requested option.

Clarify Commercial Terms

Compare the quoted product specification, included accessories, sample charges, minimum order quantity, production schedule, shipping terms, and warranty conditions. A low unit price may not represent the best overall value if essential accessories or technical support are excluded.

Choose a Supplier That Communicates Clearly

Reliable communication is particularly important when a drain must fit a custom bathroom layout. The supplier should be able to answer technical questions, confirm product details, and communicate any limitations before an order is finalized.

For bathroom product sourcing and supplier inquiries, buyers can learn more about Xinbangye and contact the company to discuss relevant product categories, project requirements, and available specifications. Confirm the exact linear drain model, technical documentation, and customization options directly with the company before making procurement decisions.

A Practical Checklist Before Ordering Linear Shower Drains

Use this checklist when preparing a residential development, hotel bathroom renovation, wholesale purchase, or commercial wet-room project.

• Measure the shower area and confirm the finished dimensions.
• Determine the drain position and direction of the floor slope.
• Verify the channel length, width, depth, and installation clearance.
• Confirm outlet size, position, orientation, and plumbing compatibility.
• Check the expected shower flow rate against the complete drainage system's capacity.
• Confirm compatibility with the selected waterproofing system.
• Specify the tile thickness and required finished grate height.
• Select the material, finish, grate pattern, and hair-catching components.
• Review installation instructions and required testing procedures.
• Clarify the model number, order quantity, packaging, lead time, and warranty terms.
• Request samples or technical drawings where necessary.
• Agree on quality inspection and documentation requirements before shipment.
