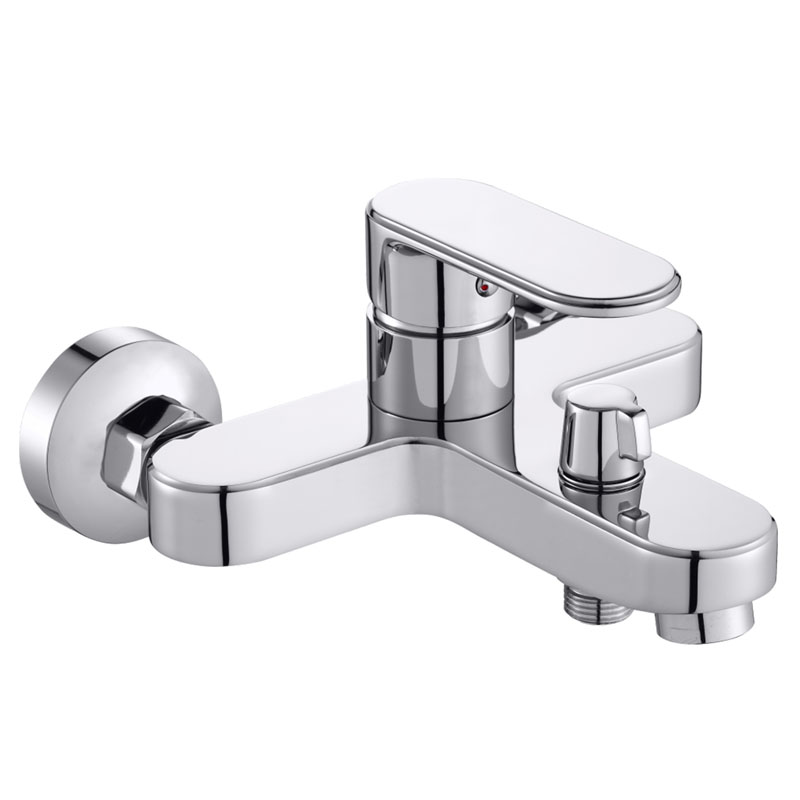

What Are the Rough-In Dimensions for a Wall Mounted Bathtub Faucet
2026-06-09
Installing a Wall Mounted Bathtub Faucet requires precise planning. The term "rough-in dimensions" refers to the measurements from the finished wall to the center of the faucet’s water inlets. For a reliable install, Kingsdom recommends standardizing these figures before tiling.
Below are the typical rough-in standards for a Wall Mounted Bathtub Faucet:
| Measurement | Standard Dimension (inches) | Notes |
|---|---|---|
| Height from tub rim | 6 - 10 inches | Allows comfortable clearance for spout reach. |
| Distance between centers | 8 inches (center-to-center) | Industry standard for valve bodies. |
| Spout projection | 7 - 12 inches | Must extend past the tub’s inner edge. |
| Valve depth from finished wall | 2 - 3 inches | Critical for trim fitment. |
Key rough-in checklist for a Wall Mounted Bathtub Faucet:
-
Finished wall thickness (tile + backer board) must be calculated before setting the valve.
-
Water supply stub-outs should be ½" copper or PEX, secured to blocking.
-
Drop-ear elbow (angled fitting) provides rigid support for the spout.
Wall Mounted Bathtub Faucet FAQ – Common Rough-In Questions
Q1: What happens if my rough-in depth is wrong for a Wall Mounted Bathtub Faucet?
A: If the valve sits too deep (more than 3 inches from finished wall), the trim sleeve won’t reach, leaving exposed threads. If too shallow, the escutcheon won’t seal against the wall, causing water intrusion. Kingsdom offers adjustable valve bodies that tolerate 1.5 to 3.5 inches depth, but always measure before backer board installation.
Q2: Can I install a Wall Mounted Bathtub Faucet on any type of wall?
A: No. The wall must have solid blocking (2x6 lumber) mounted between studs to support the faucet’s weight and lever force. Drywall alone will fail. For Kingsdom heavy brass faucets, use plywood reinforcement behind the tile backer. Tub spout drop-ears must screw directly into blocking.
Q3: How high should I mount the faucet above a freestanding tub?
A: Measure from the tub’s finished deck (or rim) to the spout centerline. Standard is 6-10 inches. For deeper soaking tubs, Kingsdom recommends 8 inches. If lower than 6 inches, back-siphonage risk increases. If higher than 12 inches, water splashes excessively.
Final rough-in tip: Always test-fit the Wall Mounted Bathtub Faucet trim to the valve body before closing the wall. Kingsdom provides a plastic rough-in guide with every valve to eliminate guesswork.
