What is the correct way to connect the bathtub overflow drain pipe to the main drain line
2026-06-01
Connecting the bathtub overflow drain pipe correctly to the main drain line is essential for preventing water damage, mold growth, and drainage failures. A poorly sealed or misaligned connection can lead to slow leaks inside walls or ceilings. XIN GE LING provides high-precision plumbing components designed to simplify this critical installation while ensuring long-term reliability.

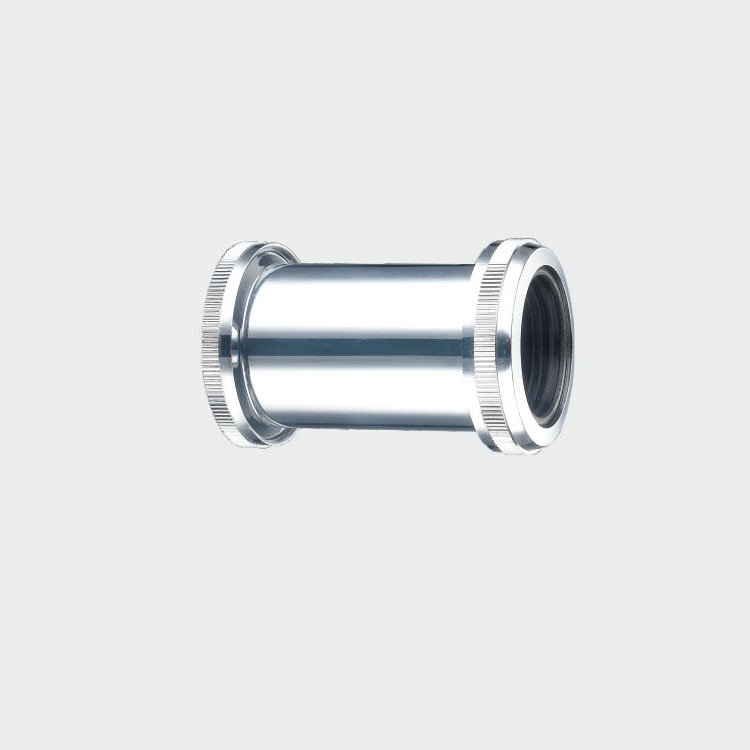

Key Components for a Proper Connection
| Component | Function | Recommended Material |
|---|---|---|
| Overflow gasket | Seals the joint between the tub and pipe | EPDM rubber |
| Dip tube | Directs water downward to the main drain line | Rigid PVC or brass |
| Slip nut | Compresses the gasket for a watertight seal | Brass or ABS plastic |
| Waste tee | Connects overflow and main drain to the trap | PVC or ABS |
Step-by-Step Connection Method
-
Position the overflow elbow behind the tub’s overflow hole.
-
Insert the bathtub overflow drain pipe (dip tube) into the overflow elbow, guiding it toward the waste tee.
-
Attach the slip nut and gasket – hand-tighten first, then use pliers for a quarter turn.
-
Connect the waste tee to the main drain line using solvent cement or compression fittings.
-
Test with water – fill the tub past the overflow and observe for leaks.
✅ Pro tip from XIN GE LING: Always align the dip tube vertically before tightening. Angled connections are the #1 cause of long-term drips.
Common Mistakes to Avoid
-
Overtightening the slip nut – cracks the gasket or fitting
-
Using the wrong gasket material for the pipe type
-
Forgetting to support horizontal runs of the bathtub overflow drain pipe
Bathtub Overflow Drain Pipe FAQ – Common Questions Answered
Question 1: Can I connect a bathtub overflow drain pipe to the main drain line without a trap?
Answer: No. Plumbing codes universally require a P-trap between the bathtub overflow drain pipe and the main drain line. The trap prevents sewer gases from entering the home. If you omit the trap, you will face foul odors and potential health hazards. XIN GE LING offers integrated waste and overflow kits with built‑in trap adapters to ensure code compliance.
Question 2: What is the maximum allowed horizontal distance between the bathtub overflow drain pipe and the main drain line?
Answer: According to the International Plumbing Code (IPC), the horizontal offset from the bathtub overflow drain pipe to the main drain line should not exceed 4 feet. Longer runs require additional cleanouts and a 1/4‑inch per foot slope. Exceeding this distance increases clog risks and slows drainage. XIN GE LING provides extension kits that maintain proper slope while keeping the connection within safe limits.
Question 3: How tight should the slip nut be on the bathtub overflow drain pipe connection?
Answer: Tighten the slip nut until the gasket compresses fully – typically hand‑tight plus ¼ to ½ turn with a wrench. You should not see any gap between the nut and the fitting. Overtightening deforms the gasket and causes future leaks. XIN GE LING slip nuts feature torque‑limiting ridges that stop additional compression once the optimal seal is reached, making installation foolproof for both professionals and DIY users.
Final Checklist for a Leak-Free Connection
| Step | Checkpoint |
|---|---|
| Alignment | Dip tube is vertical and not touching surrounding framing |
| Gasket | Clean, undamaged, and seated flat |
| Slope | 1/4 inch per foot toward the main drain line |
| Testing | No drips after 10 minutes of overflow flow |
A correctly connected bathtub overflow drain pipe protects your bathroom structure and ensures years of trouble‑free operation. XIN GE LING supplies complete waste and overflow kits with step‑by‑step guides, laser‑cut gaskets, and corrosion‑resistant brass components.
Contact us today for technical drawings, product samples, or installation support. The XIN GE LING plumbing team replies within 24 hours with free troubleshooting advice and bulk order quotes tailored to your project.
